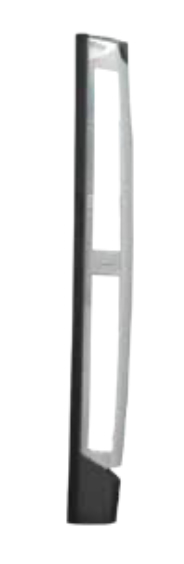

Door-Max Slim AM EAS Antenna
Sensormatic · 58 kHz · Frame-mount
A slender, frame-mount AM pedestal for retailers who need exit protection without the floor footprint. Designed to sit flush against door frames and glass, with integrated alarms and nuisance-reduction features.
- Technology
- AM EAS · 58 kHz
- Coverage
- Up to 1.8 m (6 ft)
- Form factor
- Frame-mount, slim
- Alarm
- Visual + 109 dB(A) audible
Overview
Slim profile for entrances where pedestals don't fit.
Door-Max mounts directly to door frames, glass, and other surfaces — a useful option for narrow vestibules, mall storefronts, and boutiques where floor-standing pedestals feel intrusive. Inside the slim housing is a full AM receiver for 58 kHz tags and labels, protecting openings up to roughly 6 feet wide.
Visual and audible alarms alert associates immediately on a detection event; software-configured features cut down on everyday nuisance alarms and flag attempts to interfere with the field.
Best for
Where it belongs
- Minimal-footprint entrances where pedestal posts aren't ideal
- Design-sensitive storefronts — glass doors, narrow vestibules, boutique aesthetics
- Retailers wanting AM performance with a cleaner storefront look
Features
Nuisance-reduction & awareness
- Tags-too-Close: suppresses alarms when tagged inventory is merchandised too near the entrance, reducing nuisance alarms and service calls.
- Jammer Detection: triggers an alarm if a jamming signal is detected — alerting staff to interference attempts.
- EAS + Traffic Intelligence: when paired with a compatible data device, exposes store-level detection and traffic insights.
Specs
Technical snapshot
| Technology | AM EAS (58 kHz receiver) |
|---|---|
| Coverage | Up to 1.8 m / 6 ft openings — site conditions apply |
| Dimensions (H × W × D) | 183.9 × 24 × 4.4 cm (72.4 × 9.4 × 1.7 in) |
| Weight | ≈ 11.6 kg (25.5 lb) |
| Operating range | 0–50 °C · 0–90% RH non-condensing |
| Enclosure rating | IPx0 |
| Altitude | Evaluated < 3,200 m (10,500 ft) |
Compatibility
Part of the Sensormatic AM ecosystem
Door-Max integrates with the broader Sensormatic AM family of components and management tools.
